About The Project
Overview
Mission: Design and implement enterprise-grade Azure landing zones for a multi-business-unit organization with 15 subscriptions, hybrid connectivity, zero-trust security, and comprehensive governance framework.
Key Results:
- 15 subscriptions deployed across 3 business units with full governance
- 75% faster deployment (8 weeks → 2 weeks for multi-region setup)
- 35% cost reduction through reserved instances and FinOps optimization
- 99.99% uptime with multi-region failover and hybrid connectivity
- 100% policy compliance across all subscriptions with automated enforcement

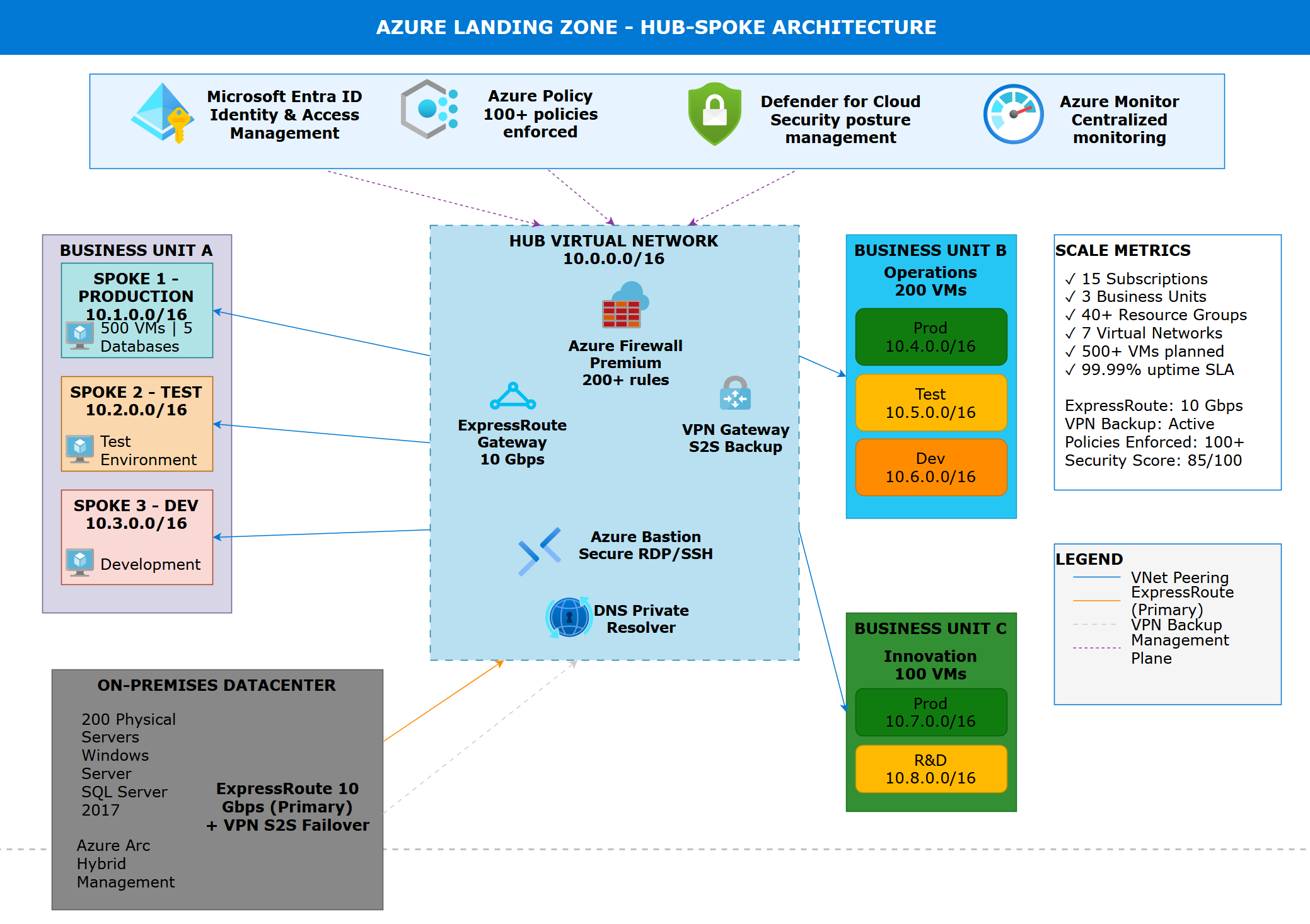

Azure Landing Zone Hub-Spoke Architecture
Hub-and-spoke topology with ExpressRoute + VPN failover
Multi-subscription governance • Azure Firewall • 3 business units • Hybrid connectivity
Impact Metrics
Subscriptions
15
3 Business Units
Deployment Speed
75%
Faster Provisioning
Cost Savings
35%
Annual Reduction
Compliance
100%
Policy Coverage

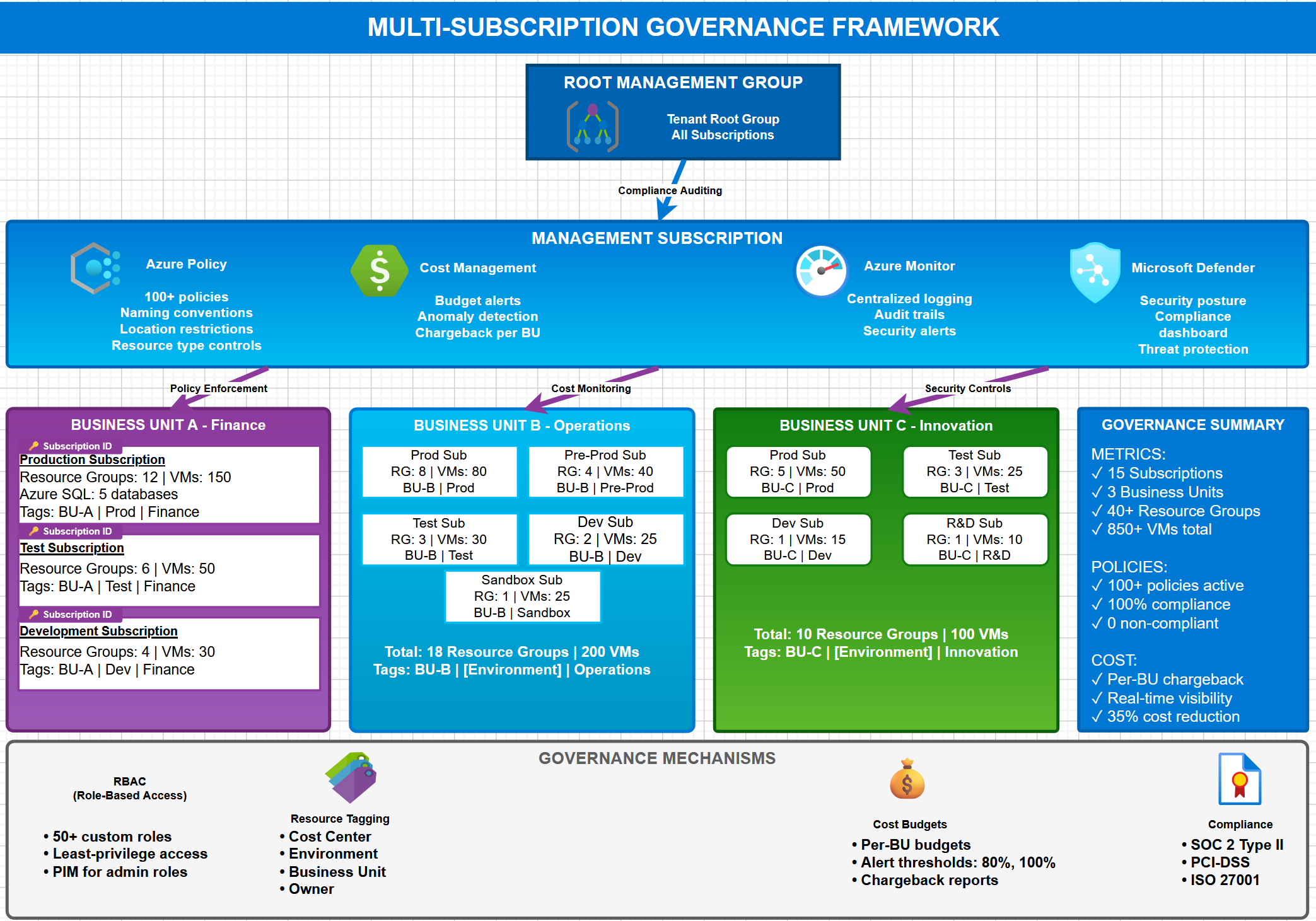

Multi-Subscription Governance Framework
Management subscription with centralized policies
15 subscriptions organized by business unit (Prod/Test/Dev)
Azure Policy enforcement • Cost management • RBAC hierarchy
Technical Solution
Landing Zone Architecture
- Hub-and-spoke model: Central hub network (10.0.0.0/16) with 3 spoke networks per region
- Multi-region: 3 Azure regions (East US, West US, North Europe) with regional failover
- Subscription strategy: 15 subscriptions organized by business unit and environment (Prod/Test/Dev)
- Resource organization: 40+ resource groups with consistent naming and tagging strategy
Hybrid Connectivity
- ExpressRoute: 10 Gbps dedicated circuit for primary production connectivity
- VPN failover: Site-to-Site VPN with automatic failover to ExpressRoute
- Azure Arc: Hybrid management for 200+ on-premises VMs and servers
- Azure Stack HCI: Edge compute integration for branch offices

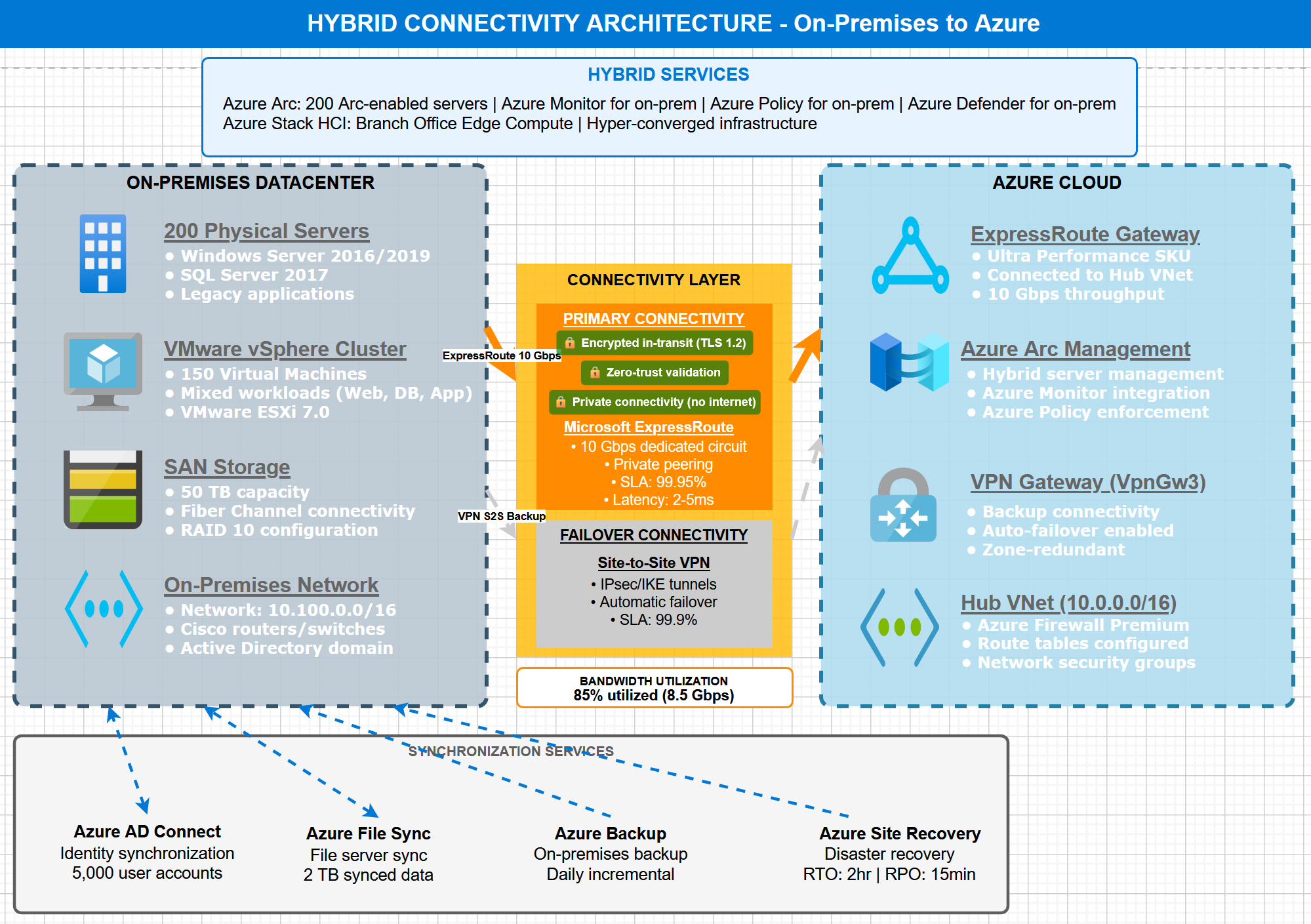

Hybrid Connectivity Architecture
On-premises datacenter connected via ExpressRoute (10Gbps) + VPN backup
Azure Arc management • Azure Stack HCI • Hybrid synchronization • Zero-trust security
Identity & Access Management
- Entra ID (Azure AD): Enterprise identity integration with federated authentication
- Privileged Identity Management (PIM): Just-in-time access for administrative roles
- Custom RBAC roles: 50+ custom roles defined for business unit isolation
- Conditional access: MFA enforcement and location-based access policies
Network Security
- Azure Firewall: Centralized firewall with 200+ application and network rules
- Web Application Firewall (WAF): OWASP Top 10 protection for public applications
- DDoS Protection Standard: Always-on traffic monitoring and mitigation
- Zero-trust architecture: Network segmentation with micro-segmentation and least-privilege access
Governance & Compliance
- Azure Policy: 100+ policies enforcing naming conventions, resource locations, and security baselines
- Resource tagging: Mandatory tags for cost center, environment, business unit, and owner
- Cost management: Budget alerts, anomaly detection, and chargeback reports per business unit
- Compliance mapping: SOC 2, PCI-DSS, ISO 27001 compliance documentation and audit trails
Governance & Compliance Framework
100+ Azure Policies enforcing security baselines
Resource tagging strategy • Cost budgets per BU • Compliance mapping (SOC 2, ISO 27001)
Automated audit trails • Policy-driven enforcement
Infrastructure as Code
- Bicep modules: 12 reusable modules for networking, compute, storage, and security
- Terraform modules: 12 modules for multi-cloud scenarios (Azure + on-premises)
- CI/CD integration: Azure DevOps pipelines with automated testing and deployment
- GitOps workflow: Infrastructure versioning with pull request approvals
Technologies & Tools
Azure Services
Azure Landing Zones, Azure Virtual Networks, ExpressRoute, Azure Firewall, Azure Policy, Entra ID (Azure AD), Azure Arc, Azure Monitor, Microsoft Defender for Cloud Azure, Cost Management
Infrastructure as Code
Bicep, Terraform, Azure DevOps, GitHub Actions
Governance & Security
Azure Policy, Azure Blueprints, Privileged Identity Management (PIM), Azure Sentinel, DDoS Protection, WAF
Core Competencies
| Competency Area | Key Skills Demonstrated |
|---|---|
| Landing Zone Design | Hub-spoke topology, subscription strategy, multi-region architecture, resource organization |
| Hybrid Connectivity | ExpressRoute configuration, VPN failover, Azure Arc deployment, hybrid synchronization |
| Identity & Access | Entra ID integration, PIM implementation, custom RBAC roles, conditional access policies |
| Network Security | Azure Firewall configuration, WAF policies, DDoS protection, zero-trust architecture |
| Governance & Compliance | Azure Policy framework, tagging strategy, cost management, compliance documentation |
| Infrastructure as Code | Bicep/Terraform modules, CI/CD pipelines, GitOps workflow, automated testing |
Project Deliverables
| Deliverable | Description |
|---|---|
| Landing Zone Architecture | 15 subscriptions with hub-spoke networks, hybrid connectivity, and security controls |
| Governance Framework | 100+ Azure Policies, tagging strategy, cost budgets, and compliance mapping |
| IaC Modules | 12 Bicep modules + 12 Terraform modules for reusable infrastructure components |
| CI/CD Pipelines | Azure DevOps pipelines with automated testing, deployment, and validation |
| Runbooks & Documentation | Operational procedures, troubleshooting guides, and architecture documentation |
| Knowledge Transfer | Team training materials, best practices guides, and mentoring sessions |
