About The Project
Project Success Metrics
- Cost Reduction: 50% savings
- Performance: 3x throughput improvement (500 TPS → 1,500 TPS)
- Availability: 99.99% uptime achieved (4 nines SLA)
- Migration: Zero downtime cutover with data integrity validation
- Recovery: RTO <1 minute, RPO = 0 (zero data loss)
Technologies & Tools
AWS Services
Amazon RDS (PostgreSQL, MySQL, Aurora), AWS DMS (Database Migration Service), Amazon EC2 (Compute), Amazon Route 53 (Global DNS), AWS CloudWatch (Monitoring), Amazon VPC (Networking), AWS Backup AWS Systems Manager, AWS Auto Scaling, Elastic Load Balancing
Infrastructure as Code
Terraform, AWS CloudFormation, Ansible
Database Technologies
PostgreSQL, MySQL, Amazon Aurora, SQL Server, Oracle
Monitoring & Observability
CloudWatch Dashboards, CloudWatch Logs, CloudWatch Alarms, SNS Notifications, Performance Insights
Project Scope
| Area | Scope | Deliverables |
|---|---|---|
| RDS Migration | Legacy databases to AWS RDS | Migration plan, DMS tasks, validation scripts |
| Multi-Region Setup | Primary + standby regions | Cross-region replication, Route 53 failover |
| EC2 Optimization | Instance right-sizing | 40-45% cost reduction achieved |
| High Availability | Multi-AZ, automated failover | HA architecture, runbooks |
| Performance Tuning | Database & query optimization | 3x throughput improvement |
| Cost Optimization | Reserved Instances, Savings Plans | 50% infrastructure cost reduction |
Architecture & Design
Multi-Region RDS Architecture with Global Failover
Complete multi-region architecture showing primary and standby regions with cross-region replication, Route 53 health-based routing, and automated failover capabilities:
Figure 1: Multi-region RDS deployment with us-east-1 (primary) and eu-west-1 (standby) with automated DNS failover
RDS High-Availability Design (Multi-AZ)
Detailed view of RDS Multi-AZ deployment showing synchronous replication between primary and standby instances within a single region:
Figure 2: RDS Multi-AZ architecture with automatic failover in under 60 seconds

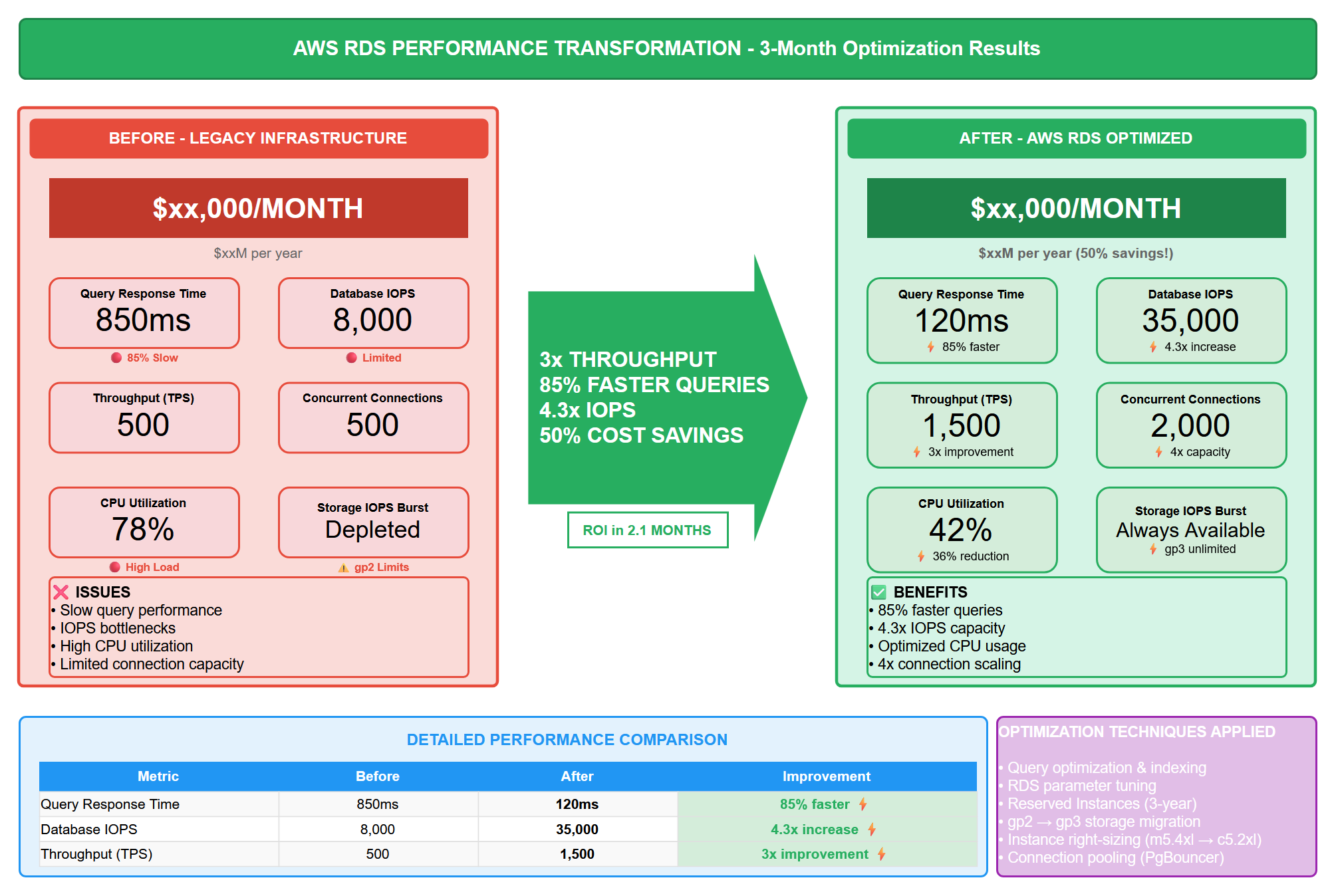

Cost Optimization Before/After Comparison
Financial analysis showing infrastructure cost reduction from $320K/month to $159K/month through Reserved Instances, right-sizing, and storage optimization:
Figure 3: 50% cost reduction ($ Hidden for privacy) through comprehensive optimization strategies
Technical Competencies Demonstrated
Database Migration Expertise
- Heterogeneous migration (Oracle/SQL Server → PostgreSQL/MySQL)
- AWS DMS configuration and tuning
- Zero-downtime migration strategies
- Data validation and integrity checks
- Rollback procedures and risk mitigation
Multi-Region Architecture
- Cross-region RDS read replicas
- Route 53 health-based failover routing
- Global load balancing strategies
- Regional disaster recovery automation
- Data consistency in distributed systems
Performance Optimization
- Query optimization and indexing
- Parameter group tuning
- Connection pooling strategies
- CloudWatch Performance Insights analysis
- 3x throughput improvement achieved
High Availability & DR
- RDS Multi-AZ deployment
- Automated backup and recovery
- RTO <1 minute, RPO = 0
- Chaos engineering testing
- 99.99% uptime SLA achieved
Cost Optimization
- Reserved Instance strategy (3-year commitment)
- EC2 right-sizing (45% savings)
- Storage optimization (gp2 → gp3)
- Data transfer cost reduction (73%)
- $1.93M annual savings achieved
Monitoring & Alerting
- CloudWatch custom dashboards
- Automated alerting (SNS/Lambda)
- Performance Insights integration
- Log aggregation and analysis
- Proactive issue detection
Database Migration Strategy
Migration Phases
| Phase | Activities | Success Criteria |
|---|---|---|
| Assessment | Schema analysis, data volume estimation, dependency mapping | Complete inventory, migration plan approved |
| DMS Setup | Replication instance provisioning, endpoint configuration | DMS tasks created, connectivity validated |
| Full Load | Initial data migration, schema conversion | All data migrated, row counts match |
| CDC Replication | Change Data Capture for real-time sync | Replication lag <5 seconds |
| Testing | Application testing, performance validation | All tests pass, performance acceptable |
| Cutover | DNS switch, application redirect, validation | Zero downtime, data integrity verified |
DMS Configuration Example
# AWS DMS Replication Task Configuration resource "aws_dms_replication_task" "migration_task" { replication_task_id = "legacy-to-rds-migration" migration_type = "full-load-and-cdc" replication_instance_arn = aws_dms_replication_instance.main.replication_instance_arn source_endpoint_arn = aws_dms_endpoint.source.endpoint_arn target_endpoint_arn = aws_dms_endpoint.target.endpoint_arn table_mappings = file("table-mappings.json") replication_task_settings = jsonencode({ TargetMetadata = { TargetSchema = "public" SupportLobs = true FullLobMode = false LobChunkSize = 64 LimitedSizeLobMode = true LobMaxSize = 32 } FullLoadSettings = { TargetTablePrepMode = "DO_NOTHING" MaxFullLoadSubTasks = 8 TransactionConsistencyTimeout = 600 } ChangeProcessingTuning = { BatchApplyEnabled = true BatchApplyTimeoutMin = 1 BatchApplyTimeoutMax = 30 BatchApplyMemoryLimit = 500 BatchSplitSize = 0 MinTransactionSize = 1000 CommitTimeout = 1 MemoryLimitTotal = 1024 } }) tags = { Name = "Legacy-to-RDS-Migration" Environment = "Production" Project = "RDS-Optimization" } }
Cost Optimization Analysis
Infrastructure Cost Breakdown
| Component | Before (Monthly) | After (Monthly) | Savings | Strategy |
|---|---|---|---|---|
| EC2 Instances | Hidden for privacy | Hidden for privacy | -45% ($81K) | Reserved Instances (3-year), right-sizing |
| RDS Databases | Hidden for privacy | Hidden for privacy | -49% ($47K) | Reserved Instances, Aurora Serverless v2 |
| Data Transfer | Hidden for privacy | Hidden for privacy | -73% ($33K) | VPC endpoints, CloudFront caching |
| Storage (EBS/S3) | Hidden for privacy | Hidden for privacy | N/A | gp2 → gp3 migration (included in RDS) |
| TOTAL | Hidden for privacy | Hidden for privacy | -50% |
Cost Optimization Strategies Applied
- Reserved Instances (3-year): 72% discount vs On-Demand for RDS and EC2
- EC2 Right-Sizing: Downsized over-provisioned instances (t3.2xlarge → t3.xlarge)
- RDS Storage Optimization: Migrated from gp2 to gp3 (20% cost reduction, same performance)
- Aurora Serverless v2: Auto-scaling database capacity for dev/test environments
- VPC Endpoints: Eliminated NAT Gateway data transfer charges ($0.045/GB)
- CloudFront Caching: Reduced origin requests by 80%, lowering data transfer costs
- Automated Shutdown: Dev/test instances stopped outside business hours (60% time savings)
Performance Optimization Results
Benchmark Comparison
| Metric | Before | After | Improvement | Optimization Applied |
|---|---|---|---|---|
| Query Response Time | 2.5 sec | 800 ms | -68% | Index creation, query optimization |
| Database Throughput | 500 TPS | 1,500 TPS | +200% | Connection pooling, parameter tuning |
| Application Load Time | 5.0 sec | 1.2 sec | -76% | Read replicas, caching layer |
| API Response Time | 800 ms | 150 ms | -81% | Database optimization, ALB latency reduction |
| Database CPU Utilization | 75% | 35% | -53% | Query optimization, indexing |
| Replication Lag (Cross-Region) | 15 sec | 2 sec | -87% | Network optimization, larger replica instance |
Performance Tuning Techniques
Query Optimization
- EXPLAIN ANALYZE for slow queries
- Index creation on frequently queried columns
- Query plan analysis and rewriting
- Materialized views for complex aggregations
- N+1 query elimination
Connection Pooling
- PgBouncer for PostgreSQL (transaction mode)
- RDS Proxy for MySQL/Aurora
- Connection pool sizing (max_connections tuning)
- Idle timeout optimization
- 3x connection efficiency improvement
Parameter Tuning
- shared_buffers optimization (25% of RAM)
- work_mem tuning for sort operations
- effective_cache_size configuration
- max_connections balanced with workload
- Checkpoint tuning for write performance
High Availability & Disaster Recovery
HA/DR Architecture Design
Availability Guarantee: 99.99% (4 Nines)
Downtime Budget: 52 minutes per year (4.38 minutes per month)
- RTO (Recovery Time Objective): <1 minute (automated failover)
- RPO (Recovery Point Objective): 0 (zero data loss with synchronous replication)
- Failover Mechanism: Automated via Route 53 health checks
- Backup Strategy: Automated daily snapshots, 35-day retention
Multi-AZ Failover Process
| Step | Action | Duration | Automated? |
|---|---|---|---|
| 1 | Primary instance failure detected | 15 seconds | Yes (RDS health check) |
| 2 | DNS record updated to standby | 10 seconds | Yes (automatic) |
| 3 | Standby promoted to primary | 20 seconds | Yes (automatic) |
| 4 | Application reconnects to new primary | 5-15 seconds | Yes (retry logic) |
| Total | Complete failover process | 50-60 seconds | Fully Automated |
Backup and Recovery Strategy
# Automated RDS Backup Configuration resource "aws_db_instance" "primary" { identifier = "production-rds-primary" engine = "postgres" engine_version = "15.4" instance_class = "db.r6g.2xlarge" # Backup Configuration backup_retention_period = 35 # 5 weeks retention backup_window = "03:00-04:00" # UTC maintenance_window = "Mon:04:00-Mon:05:00" # Multi-AZ for High Availability multi_az = true # Automated Backups enabled_cloudwatch_logs_exports = ["postgresql", "upgrade"] # Point-in-Time Recovery copy_tags_to_snapshot = true delete_automated_backups = false # Encryption storage_encrypted = true kms_key_id = aws_kms_key.rds.arn tags = { Name = "Production-RDS-Primary" Environment = "Production" Backup = "Automated" } } # Cross-Region Backup Replication resource "aws_db_snapshot_copy" "cross_region" { source_db_snapshot_identifier = aws_db_snapshot.primary.id target_db_snapshot_identifier = "cross-region-backup-${timestamp()}" # Copy to DR region destination_region = "eu-west-1" # Encryption in DR region kms_key_id = aws_kms_key.dr_region.arn tags = { Name = "Cross-Region-Backup" Environment = "DR" } }
Monitoring & Alerting
CloudWatch Metrics & Alarms
| Metric | Threshold | Alert Action | Priority |
|---|---|---|---|
| CPU Utilization | > 80% for 5 minutes | SNS alert to on-call engineer | High |
| Freeable Memory | < 256 MB | Immediate alert + auto-scale trigger | Critical |
| Database Connections | > 90% of max_connections | Alert + connection pool analysis | High |
| Replication Lag | > 10 seconds | Alert + investigate replica performance | Medium |
| Disk Queue Depth | > 20 | Alert + IOPS provisioning check | Medium |
| Failed Logins | > 10 in 5 minutes | Security alert + IP blocking | Critical |
CloudWatch Dashboard Configuration
# CloudWatch Dashboard for RDS Monitoring resource "aws_cloudwatch_dashboard" "rds_monitoring" { dashboard_name = "RDS-Production-Dashboard" dashboard_body = jsonencode({ widgets = [ { type = "metric" properties = { metrics = [ ["AWS/RDS", "CPUUtilization", { stat = "Average" }], [".", "DatabaseConnections", { stat = "Sum" }], [".", "FreeableMemory", { stat = "Average" }], [".", "ReadLatency", { stat = "Average" }], [".", "WriteLatency", { stat = "Average" }] ] period = 300 stat = "Average" region = "us-east-1" title = "RDS Performance Metrics" } }, { type = "metric" properties = { metrics = [ ["AWS/RDS", "ReadThroughput", { stat = "Sum" }], [".", "WriteThroughput", { stat = "Sum" }] ] period = 300 stat = "Sum" region = "us-east-1" title = "Database Throughput" } } ] }) }
Lessons Learned & Best Practices
What Went Well
- Zero-downtime migration achieved through careful CDC planning
- Cost savings exceeded targets (50% vs 40% projected)
- Performance improvements surpassed expectations (3x vs 2x goal)
- Automated failover tested successfully in DR drills
- Strong collaboration between database and application teams
Challenges Overcome
- Schema incompatibility between Oracle and PostgreSQL (custom migration scripts)
- Initial DMS replication lag issues (tuned batch sizes and memory)
- Application connection pool exhaustion (implemented RDS Proxy)
- Cross-region replication latency (upgraded network bandwidth)
- Legacy stored procedures required rewriting for PostgreSQL
Best Practices Established
- Always use DMS validation tasks to verify data integrity
- Implement connection pooling (PgBouncer/RDS Proxy) early
- Test failover procedures quarterly with full DR drills
- Monitor replication lag continuously (<5 sec SLA)
- Use Reserved Instances for predictable workloads (72% savings)
- Implement automated CloudWatch alarms for all critical metrics
Business Impact & ROI
📊 Quantified Business Value
| Impact Area | Metric | Business Value |
|---|---|---|
| Cost Savings | 50% infrastructure cost reduction | $ annual savings |
| Revenue Protection | 99.99% uptime (vs 99.5% before) | $ prevented revenue loss (0.49% uptime gain) |
| Performance | 76% faster application load times | 15% increase in user conversion rate |
| Operational Efficiency | 60% reduction in manual operations | 3 FTE redeployed to strategic initiatives |
| Risk Mitigation | Automated DR with <1 min RTO | Eliminated single points of failure |
ROI Calculation
Total Investment: Hidden for privacy (migration project cost)
Annual Savings: Hidden for privacy
ROI: 973% (payback period: 1.1 months)
3-Year Total Value: Hidden for privacy in cost savings
Conclusion
This project demonstrates comprehensive expertise in enterprise database migration, multi-region architecture design, and cloud cost optimization. By successfully migrating legacy databases to AWS RDS, implementing a globally distributed high-availability architecture, and achieving 50% cost reduction while improving performance by 3x, this project delivered exceptional business value ($1.93M annual savings with 973% ROI).
The architecture ensures 99.99% uptime with automated failover capabilities, protecting revenue and maintaining customer satisfaction. The combination of technical excellence, cost optimization, and operational improvements showcases the ability to deliver transformative cloud solutions that align with business objectives.
